This guide covers inspecting and adjusting table parallelism on Grizzly planers G0453Z, G0454Z, and G1033X. Uneven or tapered boards indicate misalignment, with maximum tolerances of 0.002" side-to-side and 0.020" front-to-back. Adjustments involve rotating chain sprockets for large changes and micro-adjustment screws for fine tuning. Safety requires disconnecting power before adjustments. Use a Rotacator or equivalent tools for precise measurement.
Applies to:
- G0453Z 20" 5 HP Planer
- G0454Z 20" 7-1/2 HP Planer
- G1033X 20" 5 HP Planer
Overview
If your planer is producing boards that are uneven in thickness or tapered from one side to the other, the table may no longer be parallel with the cutterhead. Proper table parallelism is critical for producing accurate, consistent results.
This article explains how to inspect the table for proper alignment and how to make adjustments if necessary. The procedures below are based on the factory service information for the G0453Z, G0454Z, and G1033X.
Symptoms
Your planer may need a table parallelism adjustment if you notice any of the following:
- Boards are consistently thicker on one side than the other.
- Boards come out tapered from front to back.
- Thickness measurements vary across the width of the same board.
- Planed material is not uniform even after verifying the cutterhead and knives are properly installed.
Maximum Allowable Tolerances
| Measurement | Maximum Tolerance |
|---|---|
| Cutterhead to Table (Side-to-Side) | 0.002" |
| Head Casting to Table (Front-to-Back) | 0.020" |
The side-to-side alignment is the most critical because it directly affects the finished thickness of your workpiece.
The front-to-back alignment is less critical because the feed rollers, pressure bar, and chip breaker are adjusted relative to the table position.
Tools Required
- Rotacator (recommended) or equivalent dial indicator
- #2 Phillips screwdriver
- 14 mm wrench or socket
- 6 mm hex wrench
- Feeler gauges and a flat wood block (if a Rotacator is unavailable)
For the most accurate measurements, Grizzly recommends using the W1218A Rotacator, a magnetic-base setup tool designed for planer setup and precision machine adjustments.
Inspecting Table Parallelism
The easiest way to determine whether the table is out of alignment is to:
- Plane a workpiece.
- Measure its thickness in several locations.
- Compare the measurements.
If the workpiece is tapered from left to right or from front to back, table parallelism may require adjustment.
For a more accurate inspection, use a Rotacator (or a wood block and feeler gauges if necessary) to measure the relationship between the cutterhead and table. If the measurements exceed the allowable tolerances, adjust the table before continuing to use the planer.
Understanding Table Parallelism
There are two alignments to consider:

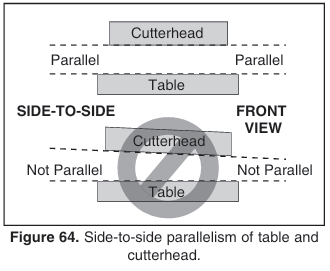

Side-to-Side Parallelism
The table should remain parallel with the cutterhead across its entire width.
Maximum allowable deviation: 0.002"
This adjustment has the greatest impact on planing accuracy.

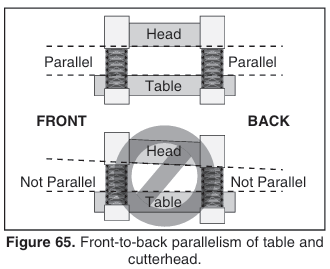

Front-to-Back Parallelism
The table should also remain reasonably parallel with the head casting from front to back.
Maximum allowable deviation: 0.020"
Because several machine components are referenced from the table, this measurement is important, but less critical than the side-to-side adjustment.
How the Adjustment Works
The planer uses two methods to adjust table position:
- Adjustments greater than 0.016": Rotate the chain sprockets beneath the table.

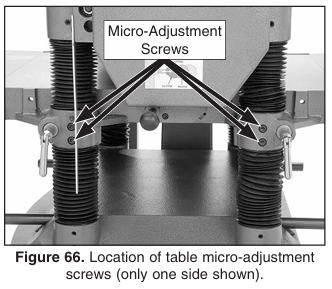

- Adjustments less than 0.016": Use the micro-adjustment screws on the table mounting.
Safety
⚠️ Disconnect the machine from power before beginning any inspection or adjustment.
Adjusting Table Parallelism
- Disconnect the machine from power.
- Remove the motor access panel.
- Locate the table height chain beneath the table.
- Loosen the lock bolts and the idler sprocket.
- Move the chain away from the sprocket you want to adjust so that sprocket can rotate independently.
Important
If the left side of the table is too high, adjust both left-side sprockets equally.
Each sprocket tooth changes table height by approximately 0.016". Count the number of teeth moved so both sprockets remain synchronized.
- Mark one sprocket tooth before rotating it.
- Rotate the sprocket:
- Clockwise to lower the table
- Counterclockwise to raise the table
- Reinstall the chain.
- Repeat as needed until the table-to-cutterhead clearance is within 0.016" before making fine adjustments.
- Verify the chain is properly seated, then tighten the idler sprocket and lock bolts.
- If necessary, loosen the table micro-adjustment screws and make small adjustments until the table is correctly aligned with the cutterhead.
Note: Achieving proper alignment may require small adjustments on both the left and right columns.
Helpful Tips
Tighten all fasteners after each adjustment before taking new measurements. Loose fasteners can produce inaccurate readings.
Do not allow the chain to become excessively loose during adjustment. If it comes off all of the sprockets, reinstalling it can be difficult.
